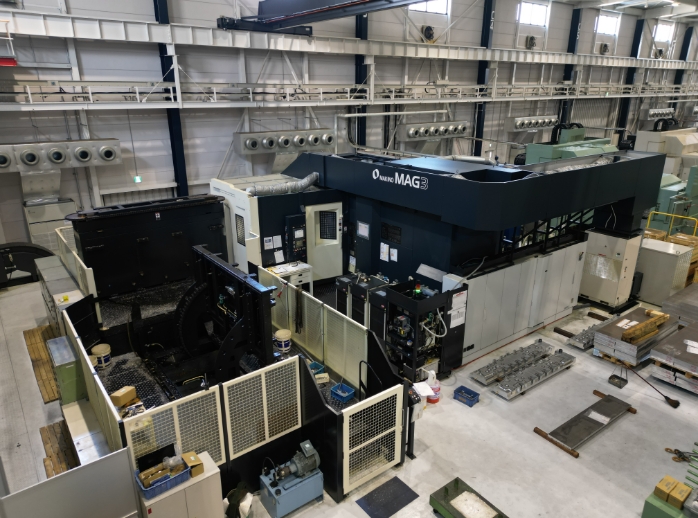

Horizontal 5-Axis Machining Center MAKINO MAG-3 -

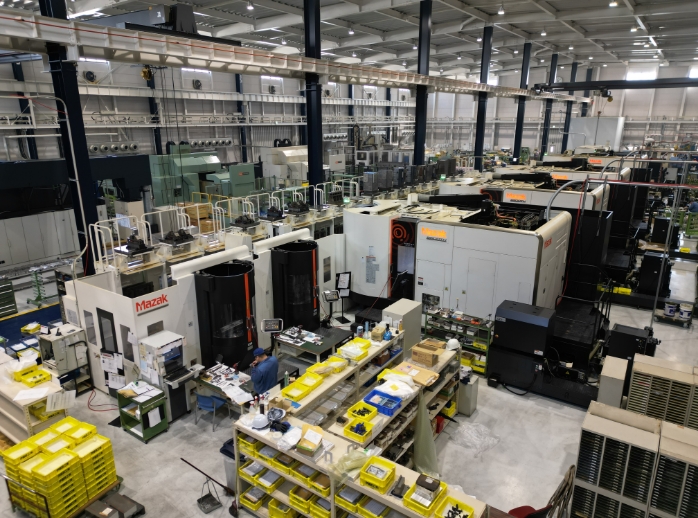

5-Axis FMS Mazak VORTEX i-630V/6 -

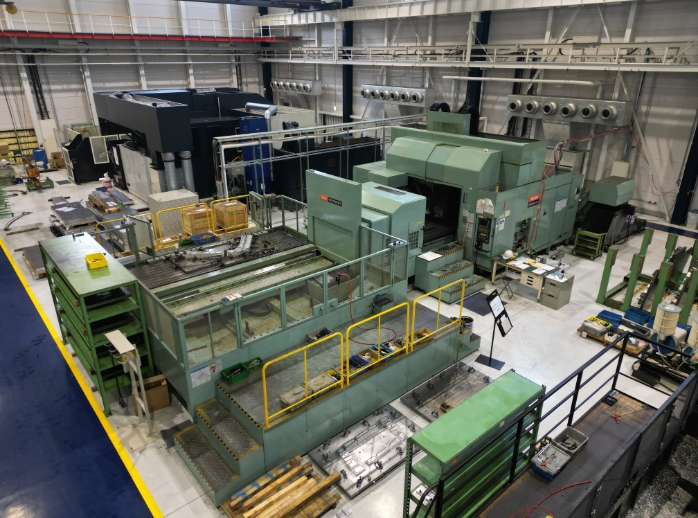

Gantry 5-Axis Machining Center Mazak VORTEX1400 -

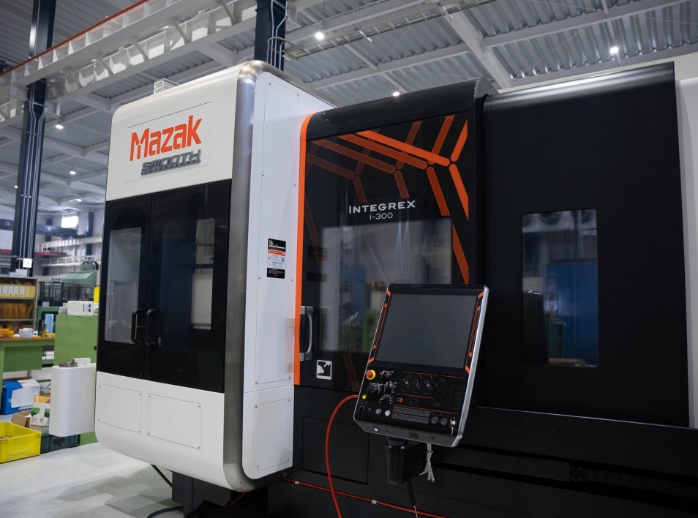

Simultaneous 5-Axis Multi-Tasking Lathe Mazak INTEGREX I-300 -

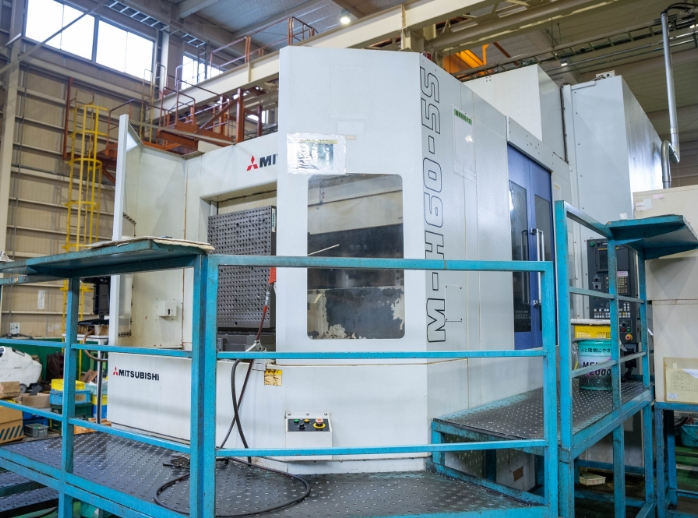

Horizontal 5-Axis Machining Center MITSUBISHI M-H60-5S -

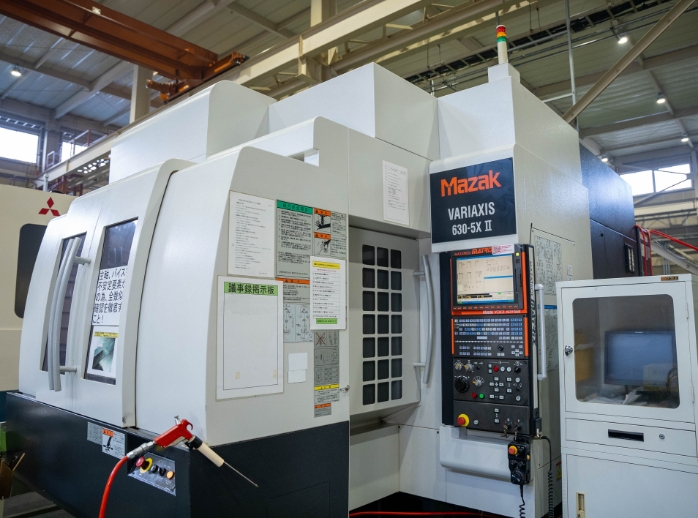

Vertical 5-Axis Machining Center Mazak VARIAXIS 630-5XⅡ
Equipment list
| Equipment name | Manufacturer | Model | Specification | Qty |
|---|---|---|---|---|
| Horizontal 5-Axis Machining Center |
MAKINO | D500 | 550×1,000×500mm Spindle Speed 14,000 min⁻¹ |
2 |
| Horizontal 5-Axis Machining Center |
MAKINO | MAG3 | 3,000×1,500×1,000mm Spindle Speed 33,000 min⁻¹, 2APC High-Speed Contouring Control |
1 |
| Vertical 5-Axis Machining Center | Yamazaki Mazak | VORTEX i-630V/6 | 1,425×1,050×1,050mm Spindle Speed 10,000 min⁻¹, FMS 3-Unit System High-Speed Contouring Control |
3 |
| Gantry 5-Axis Machining Center | Okuma Howa | VMP-16 | 2,000×2,550×1,400mm Spindle Speed 6,000 min⁻¹, 2APC High-Speed Contouring Control |
1 |
| Horizontal 5-Axis Machining Center |
Mitsubishi Heavy Industries | MH-60-5S | 1,060×1,050×1,050mm Spindle Speed 10,000 min⁻¹, 2APC High-Speed Contouring Control |
1 |
| Gantry 5-Axis Machining Center | Yamazaki Mazak | VORTEX 1400他 | 4,200×1,400×610mm Spindle Speed 13,000 min⁻¹, 2APC High-Speed Contouring Control |
2 |
| Vertical 5-Axis Machining Center | Yamazaki Mazak | VARIAXIS 630-5XⅡ | 630×765×610mm Spindle Speed 12,000 min⁻¹, 2APC High-Speed Contouring Control |
1 |
| Vertical 5-Axis Machining Center | Yamazaki Mazak | VORTEX i-630V/6 | 1,425×1,050×1,050mm Spindle Speed 10,000 min⁻¹, 2APC High-Speed Contouring Control |
1 |
| Horizontal 4-Axis Machining Center | Mitsubishi Heavy Industries | MH-100 & Others | 1,550×1,350×1,000mm Spindle Speed 12,000 min⁻¹, 1m 2APC High-Speed Contouring Control |
2 |
| Horizontal 4-Axis Machining Center |
MAKINO | a81 & Others | 720×700×650mm Spindle Speed 12,000 min⁻¹, 2APC High-Speed Contouring Control |
4 |
| Gantry 3-Axis Machining Center | Okuma | MCR-20BⅡ | 4,000×2,700×800mm Spindle Speed 4,000 min⁻¹, 3m Cross Rail Travel 700 |
1 |
| Gantry 5-Face 3-Axis Machining Center |
Mitsubishi Heavy Industries | MVR-30 | 4,200×3,000×1,500mm Spindle Speed 6,000 min⁻¹, 3m Cross Rail Travel 700 |
1 |
| Gantry 3-Axis Machining Center | Okuma | MCV-16AⅡ | 3,000×1,600×450mm Spindle Speed 4,000 min⁻¹, 3m Cross Rail Travel 1,000 |
1 |
| Vertical 3-Axis Machining Center |
OKK | MCV-560 & Others | 1,050×560×535mm Spindle Speed 6,000 min⁻¹ |
5 |
| Vertical 3-Axis Machining Center |
Mitsubishi Heavy Industries | M-V60B | 1,020×510×550mm Spindle Speed 4,000 min⁻¹, Dedicated Composite Material Machine |
1 |
| Vertical Medium-Size 3-Axis Machining Center |
OKK | CV-410 & Others | 760×410×485mm Spindle Speed 3,500 min⁻¹, High-Speed Contouring Control |
5 |
| Simultaneous 5-Axis Multi-Tasking Lathe |
Yamazaki Mazak | INTEGREX I-300 | 615×260×1,585mm Spindle Speed 10,000 min⁻¹, Milling Spindle |
1 |
| NC Vertical Turret Lathe | OM Seisakusho | TM2-12N | 1,025×850mm Spindle Speed 350 min⁻¹, 1.6m Swing 2-Axis Control (X,Y) |
1 |
| NC Lathe | Yamazaki Mazak | SLANT TURN-40N | 495×2,070mm Spindle Speed 2,200 min⁻¹, 2m Center Distance |
1 |
| NC Lathe | Yamazaki Mazak | M-4他 | 365×1020 回転数2,200min-1 |
3 |
| Vertical Milling Machine | Nidec | MH2V & Others | 700×300×360mm Spindle Speed 1,800 min⁻¹ |
3 |
| Universal Milling Machine | Makino Milling | KGJP-55 & Others | 500×300×350mm Spindle Speed 2,200 min⁻¹ |
2 |
| Horizontal Milling Machine | Enshu | HF2 & Others | 550×300×400mm Spindle Speed 1,760 min⁻¹ |
2 |
| NC Horizontal Milling Machine | Nidec OKK | RRM3P | 920×380×450mm Spindle Speed 1,600 min⁻¹ |
1 |
| Conventional Lathe | Okuma | LS | φ500×700mm Spindle Speed 1,800 min⁻¹ |
3 |
| Radial Drilling Machine | Okuma | DRA-J & Others | Spindle Travel 1,000mm Spindle Speed 2,240 min⁻¹ |
3 |
| Upright Drilling Machine | Ashina | AFD410 & Others | Spindle Travel 125mm Spindle Speed 1,870 min⁻¹ |
9 |
| Jig Borer | Yamazaki Giken | YZ-500WR & Others | 1,050×550×720mm Spindle Speed 2,000 min⁻¹, 2-Axis Control (X,Y) |
2 |
| Material Cutting Machine | Amada | HA-250他 | 250×300(φ250)mm | 3 |
| Wire EDM | Mitsubishi | DWC-110H | 300×450×(260)mm | 1 |
Inspection equipment
| Name | Manufacturer | Model | Specification | Qty |
|---|---|---|---|---|
| Coordinate Measuring Machine (CMM) | Mitutoyo | KN807 | 300×450×(260)mm | 1 |
CAD/CAM
| Name | Manufacturer | Model | Specification | Qty |
|---|---|---|---|---|
| CAD/CAM | CATIA | CATIA-V5 System | - | 1 |
| Acceptance format | CATPart、mcam、stp (STEP)、step (STEP)、ifs、iges (IGES) |
